Multithreading models (cont.)

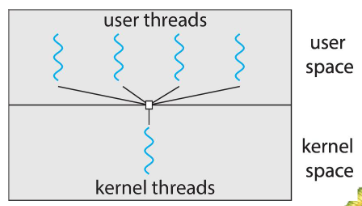

Multithreading: many-to-one

• many user thread: mapped to single kernel thread
• only one user thread mapped to kernel thread at execution time
  • which user thread is mapped: scheduling problem
• one thread blocking (of thread): causes
  • cases all
• m
• no performance benefit
  • still, structure-wise works like multithreading
  • cannot run in parallel on multicore system
    • as one kernel thread: can be active at a time
• examples
  • Solaris Green Threads
  • GNU Portable Threads
• 👨‍🏫 used in the past due to resource limitation
  • kernel thread: requires resource
  • user thread: piece of code waiting for execution
• few systems currently use this model
•

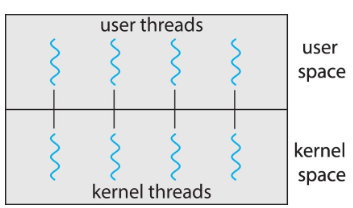

Multithreading: one-to-one

• each user-level thread: maps to one kernel threads
• maximum concurrency: allows multiple threads to run in parallel
  • having more kernel threads than user threads: meaningless
• i.e. creation of user thread: mandates kernel thread creation
  • max no. of threads / process: might be restricted due to overhead
  • could have been problematic in the past
    • as kernel thread consumes resources: memory, IO, etc.
• examples
  • Windows
  • Linux
•

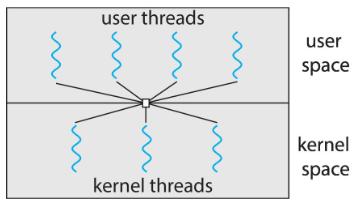

Multithreading: many-to-many

• multiplexing many user=level
• in-between
• process-contention scope: to be discussed later (Ch. 5)
  • 👨‍🏫 similar to many-to-one mapping
  • we have scheduling problem
•

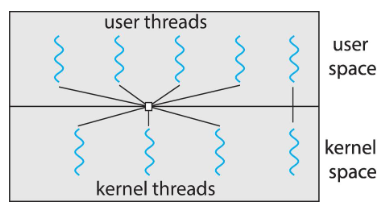

Multithreading: two-level

• similar to many-to-many
• but: it allows user thread to be bound to kernel thread
  • e.g. some user thread: significant, and requires set kernel thread
•

Multithreading mapping models

• many-to-many: most flexible
• but difficult ti implement in practice
• in modern computer: limiting no. of kernel threads: less of a problem
  • thanks to multi core

fork(), exec() semantics

• does fork() by thread: duplicate only the calling thread?
  • or all threads of a process?
• some UNIX versions: chosen two versions of fork()
  • if exec() called immediately after forking: duplicate only calling thread
  • exec(): works as normal - replacing the entire process (although only calling thread is copied)
  • 👨‍🏫 'one' of the improvement case
• different improvements exist!

Signal handling

• signals: notify a process that a particular event has occurred
  • can be receives synchronously / asynchronously
  • based on source / reason
• synchronous signals: delivered to same process performing operation causing signal
  • d.g. illegal memory access / division by 0
• signals: handled in different ways
  • some signals: ignored
  • some: handled by terminating program
    • e.g. illegal memory access
• signal handler: process signal
  • signal: generated by a particular event
  • delivered to a process
  • handled by one of two signal handlers
    • default vs. user defined
• every signal: w/ default handler that kernel users

• where signal shall be delivered for a multi-thread process?
  • deliver: signal to thread to signal applies
  • deliver: signal to every thread in process
  • deliver: signal to certain thread in process
  • assign a specific thread to receive all signals
• method of delivering signal: depends on signal type
  • synchronous signal: delivered to thread causing the signal (not other threads)
  • asynchronous signals (e.g. termination process): sent to all threads
• UNIX function for delivering kill signal: send to all thread of the process
  • s
  • specifies pid
• POSIX Pthread function: allows signal to be delivered to a specified thread
  • specifies tid
• d

Thread cancellation

• terminating thread before finishing

  • thread to be cancelled: target thread

• cancellation scenario

  • asynchronous cancellation: terminate target thread immediately
  • deferred cancellation: target thread: periodically check if it should terminate
    • allows termination in orderly fashion
    • e.g. when modifying an inter-process variable / in critical point, target thread shouldn't be terminated

• invoking thread cancellation: requests cancellation

  • actual cancellation: depending on thread state / type

• w/ Pthreads:

• by nature: cancellation of a thread affects other threads within the same process

  mode	state	type
  off	disabled
  deferred	enabled	deferred
  asynchronous	enabled	asynchronous

  Pthread code for created cancel of a thread

  #include <pthread.h>
  #pthread_t tid

  /* create the thread */
  pthread_create(&tid, 0, worker, NULL);
  // worker: a start routine / function call

  /* cancel the thread */
  pthread_cancel(tid);

  /* wait for the thread to terminate */
  pthread_join(tid, NULL);


OS example: Windows

• Windows application: runs as a separate process
• Windows API: primary API for Windows app
• w/ one-to-one mapping
• general components of a Window thread
  • tid
  • register set
  • PC
  • separate user / kernel stacks
• context of a thread: register set, stacks, and private storage areas

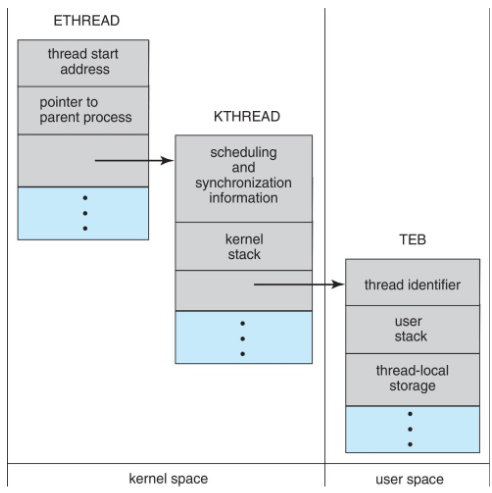

• primary data structures of a thread
  • ethread
  • kthread
  • TEB (thread environment block)
  •

OS example: Linux

• Linux: does not differentiate threads & process
  • special kind of process: task
• thread in Linux: process that (may) share certain resource w/ other thread
  • each thread: w/ unique task_struct and appears as a normal process
  • threads in Linux: happens to share everything (except context)
    • e.g. address space
    • then they behave like threads
  • ⭐👨‍🏫 Linux approach: provides much flexibility
    • e.g. sharing program, but not data
    • or sharing data, but program
    • or sharing file, but nothing else
    • impossible with traditional approach
• contracts greatly w/ Windows / Sun Solaris
  • w/ explicit kernel support for threads / lightweight processes
• if a process: consist of two threads
  • in Windows
  • in Linux: simply 2 tasks w/ normal task_struct structure
    • that are set up to share resources
• threads: created just like normal tasks
  • except: clone() syscall used to pass flag
  • clone(): allows a child task to share part of execution context w/ parent
  • clone(): specifies what to share
  • 👨‍🏫 fork / clone: creates a new task
    • clone(): only in Linux
  • flags control behavior
• instead of copying all data structures
  • new task points to data structures of parent task
• normal fork(): can be implemented as
  • clone(SIGCHLD, 0);

Basic concepts

• objective of multiprogramming: have process running at all time
  • i.e. maximize CPU utilization

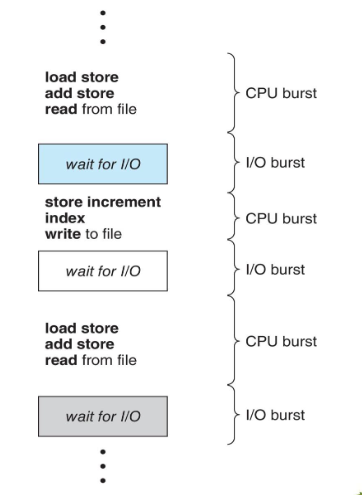

• process execution: made of cycles of CPU execution & IO wait
  • ask CPU burst and IO burst
  • 👨‍🏫 based on what you are doing at the point
  •
• when CPU idle:
  • OS try to select one process on ready queue & execute
  • unless ready queue is empty = no process in ready state
• selection of process: done by CPU scheduler
  • aka process scheduler, short-term scheduler

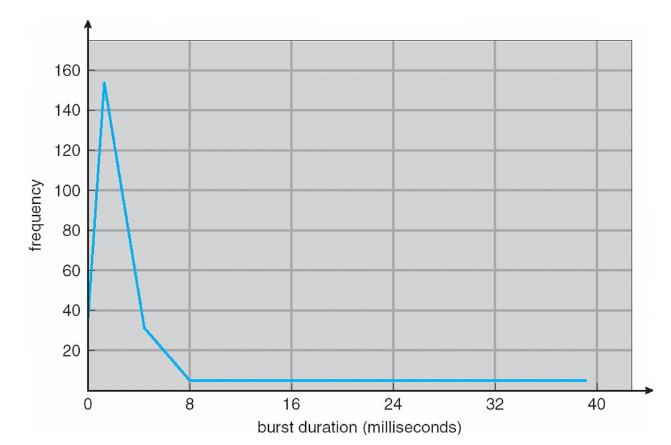

History of CPU-burst times

• majority of CPU burst time: very short
  • but very few CPU extensive jobs exist
  • aka: long-tail distribution
• typically
  • d
• distribution: matters when we design a CPU-scheduling algorithm
•

CPU scheduler

• CPU scheduler: selects on process thread on ready queue
  • i.e. what to be executed next?
  • queue
• CPU scheduling: may take place in following 4 conditions (when scheduling must be done)
  1. switching from running -> waiting state (e.g. IO request / wait)
  2. process terminates
     • giving up CPU voluntarily
  3. switching from running to ready state
     • i.e. interrupt
  4. switching from waiting to ready / new to ready
     • e.g. completion of IO
     • new process arrives on ready queue w/ higher priority
       • if it is priority-based scheduling
• case 1 & 2: non-preemptive
  • giving up CPU voluntarily
• case 3 & 4: preemptive
  • OS: forces to give up CPU
  • consider access to: shared data

Dispatcher

• dispatcher module: allocates CPU to process selected by scheduler
• involves:

• no. of context switches:
  • can be obtained by vmstat on Linux
  • ~= hundred context switches / sec usually

Scheduling criteria

• CPU utilization: fraction of the time that CPU is busy
  • as long as ready queue is not empty: CPU must not be idle
  • 👨‍🏫 priority no matter what scheduler you use
• throughput: no. of process / job completed per time
• response time: only matters for robin-round

• fairness
• computation of each: will be explained later
• generally: desirable to optimize all criteria
  • but there might be conflict, which different considerations in practice
• mostly
• in practice: we prefer to optimize minimum / maximum values rather than average
  • and there are many things to be considered
• 👨‍🏫 interactive
  • interactive: CPU
  • non-interactive: does not require sCU attention until termination
    • e.g. ML communication
